With the arrival of the Big Data Era, VoIP voice and video data traffic are increasing at a rapid pace. The IP data preprocessing product series is designed for medium-high density and high-reliability VoIP recording systems. It can intelligently collect, filter, load, aggregate, and distribute IP data and significantly reduce packet loss ratio of IP data during transmission. It effectively reduces loss rate of audio and video recording, ensures validity of data, improves system reliability, and at the same time increases the density of audio and video recording systems.

With the advent of artificial intelligence, more and more data are being brought together including VoIP voice and video; IP data traffic can now reach 1G, 10G, or more. It becomes increasingly important to ensure IP data forwarding quality so that AI engines are provided with high-quality media stream, and recognition results are  made more accurately by AI engines; efficiency of artificial intelligence solutions can subsequently be enhanced. The IP data preprocessing product series provides effective support for AI solutions.



IP data preprocessing product series features

  • VoIP data filtering
  • Smart multi-CPU distribution
  • Real-time forwarding of voice and video data
  • Voice stream, video stream load balancing
  • Multiple video recording server redundancy backup
  • Timestamp management of voice and video data
  • Voice and video data replication, aggregation, and distribution

Typical Application

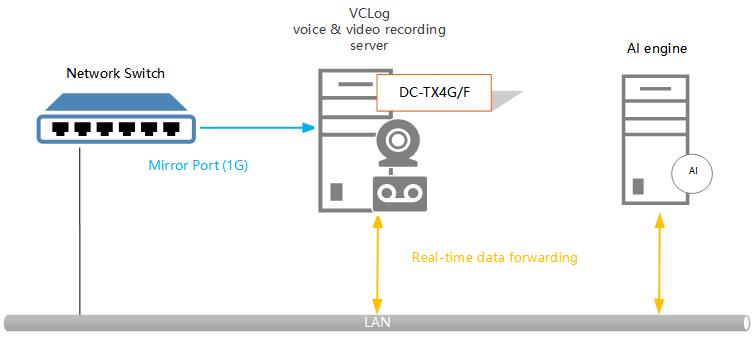

Medium-density VoIP voice and video recording system and real-time media forwarding application

The VCLog audio and video recording server uses DC-TX4G/DC-TX4GF to balance recording server CPU resources. It also forwards real-time voice and video data to the artificial intelligence server. It effectively uses recording server resources and simultaneously ensures integrity of real-time forwarding data.

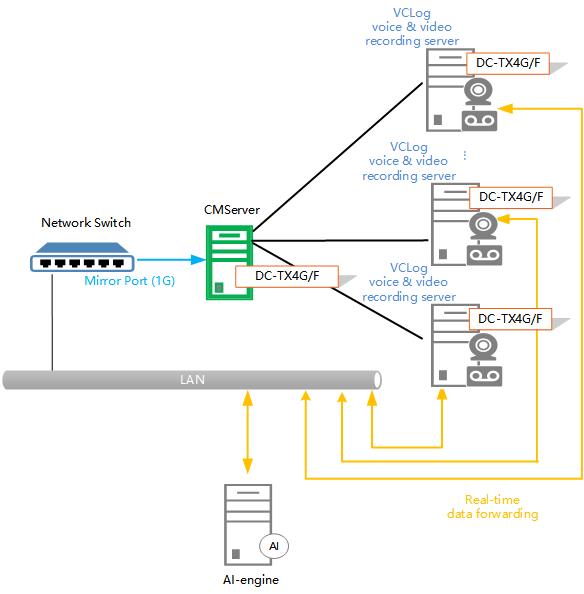

High-density VoIP voice and video recording and real-time media forwarding application

The CMServer uses DC-TX4G/DC-TX4GF to receive mirrored data and to evenly distribute the data to multiple VCLog audio and video recording servers.

The VCLog audio and video recording server uses DC-TX4G/DC-TX4GF to balance recording server CPU resources. It also forwards real-time voice and video data to the artificial intelligence server. It effectively uses recording server resources and simultaneously ensures integrity of real-time forwarding data.

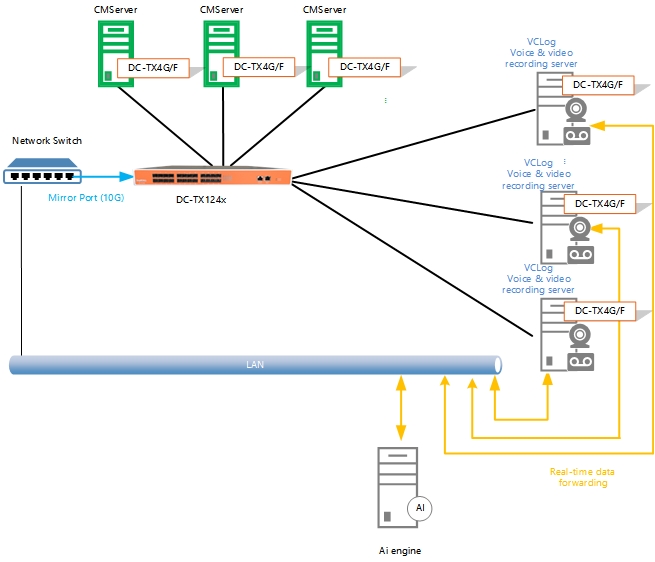

Ultra-high-density VoIP recording and real-time media forwarding applications

The DC-TX124x receives 10G mirrored data and distributes the data to the CMServer according to recording requirements.

The CMServer uses DC-TX4G/DC-TX4GF to receive mirrored data and to evenly distribute the data to multiple VCLog audio and video recording servers.

The VCLog audio and video recording server uses DC-TX4G/DC-TX4GF to balance recording server CPU resources. It also forwards real-time voice and video data to the artificial intelligence server. It effectively uses recording server resources and simultaneously ensures integrity of real-time forwarding data.



Hardware Specifications

      DC-TX124x

Network Interface: 24 x GE interface, SFP or RJ45
Optional add 0/2/4 x 10GE interface, SFP+
Management Interface: 1 x 10/100M Management Port, RJ45
1 x Standard UART Series Control Port, RJ45
LED: Network Interface: Link/ACT/Speed
Management Interface: Link/ACT
Power, Status
Power Supply: AC: 90~264V (47~63Hz)
Power Consumption: 220W (highest)
Operating Environment: Operating temperature: 0 ~ 45 °C
Storage temperature: -40 ~ 70 °C
Humidity: 5 ~ 95% (non-condensing)
Dimensions: W440 x H44.4 x D450 (mm)
Package Size: W540 x H530 x D170 (mm)
Net Weight: 8KG
Gross Weight: 10KG
Environmental Standards: RoHS 5

          DC-TX1000

Physical Specification
Dimensions: H32 x W141 x D133 (mm)
Type: External, mountable (optional mounting components)
Power Supply: Dual 12VDC/200mA
Interface
Network interfaces: Network Ports two 10/100/1000 RJ45
High-resistance tapping interfaces: Tap Out Ports two 10/100/1000 RJ45

   DC-TX4G / DC-TX4GF

Physical Specification
Dimensions: H87.5 x W447 x D740 (mm)
Type: Rack mounted server
Power Supply: Supply voltage AC 110V/220V or DC -48V
Power Supply 460W/750W/800W
Interface
Management Port: Two 10/100/1000M RJ45 network interfaces
Data interface: Optional 4-12 10/100/1000M RJ45 or SFP Interfaces



Related Product List:

840-2000-005, CMServer NAC IP Data Preprocessing Management Software (for use with DC-TX4G or DC-TX4GF)

940-1500-006, DC-TX4G 4 Gigabit Data Lossless Distributors

840-2000-003, SpanX IP Data Lossless Distribution Management Software (for use with DC-TX124x)

941-2000-003, DC-TX1240, 24 Gigabit IP Data Lossless Distributors

840-*****-*** / 94*-*****-***, not all products included are listed. Please contact us for details.
